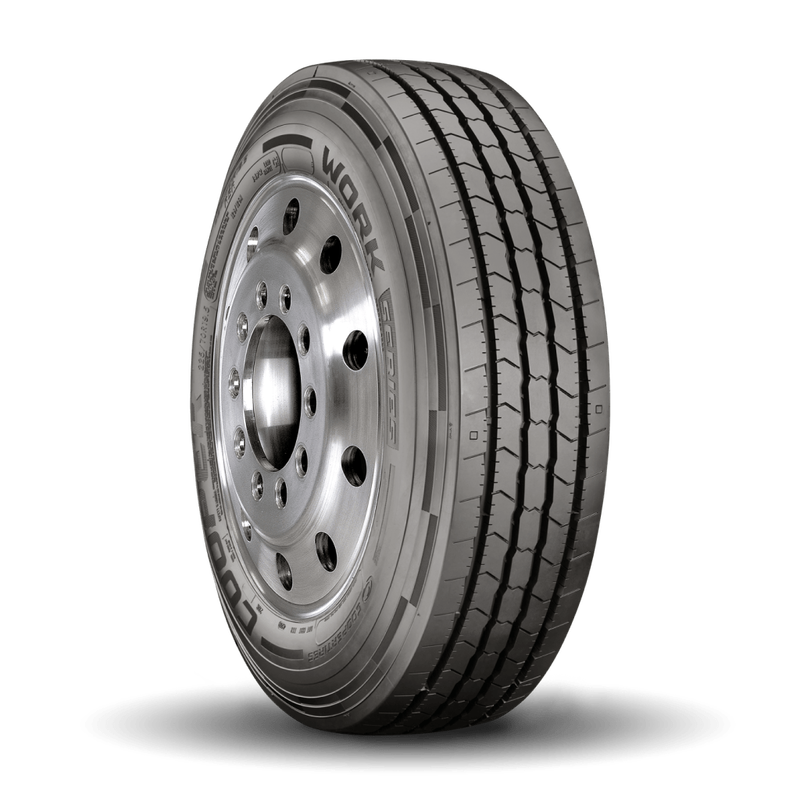

Work SeriesTM All Steel All-Position (ASA)

The Cooper® WORK Series™ ASA provides your fleet with a 17/32nds all position tire engineered for regional and pick up and delivery applications. Optimized for final mile delivery, the scrub resistant compound, all steel construction, curb bar, and stone ejectors combine to resist the hazards associated with urban applications. This Low Cost of Ownership™ tire is all about savings including a casing designed and warranted for multiple retreads and a full replacement value warranty for the first 50% of treadwear.




  • All Steel All-Position (ASA)
  • All Steel All-Position (ASA)
Features
Scrub resistant compounding
225/70R19.5 Size is N (87mph) Speed Rated
Aisle siping controls irregular wear
Unique stone ejectors in grooves
Wear Square® Visual Wear Indicator
3PMSF certification

Competitive Comparison*
Michelin XZE
Bridgestone R238
Goodyear Endurance RSA
Continental HS3/HSR+
Yokohama 104ZR
Firestone FS561
Hankook AH35

*Please consult vehicle manufacturer's certification labels for proper tire application information. Cooper® Tire recommends you always consult a tire service professional when selecting tires for your vehicle.

Specifications

Material # Tire Size Load Range Approved Rim Width Overall Diameter Overall Width Overall Width Loaded Static Loaded Radius Tread Depth (1/32") Revs Tire Weight Single Max Load Single Inflation Pressure Dual Max Load Dual Inflation Pressure
90000038409 225/70R19.5 G 6.00 - 6.75 in 32.2 in 9 in 9.7 14.9 17.0 645/mi 66.2 lbs 3970 lbs 110 psi 3750 lbs 110 psi
817 mm 228 mm 247 mm 379 mm 13.0 mm 401/km 30.1 kg 1800 kg 760 kPa 1700 kg 760 kPA
