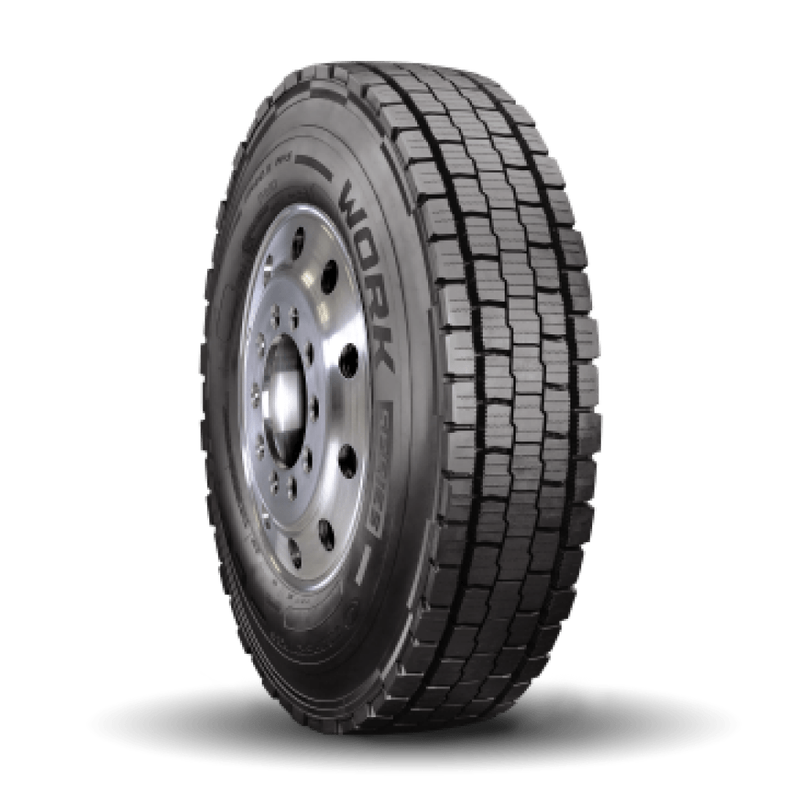

Work SeriesTM All Weather Drive (AWD)

The Cooper® WORK Series™ AWD provides your fleet with an open shoulder, 26/32nds, highly siped drive tire that is optimized for superior performance in all weather conditions. A wide footprint and deep tread provide the long, even wear that you expect from a premium drive tire, while full depth sipes, shoulder notches, and our Snow Groove Technology™ provide enhanced traction in a multitude of applications and weather conditions. This Low Cost of Ownership™ tire is all about savings including a casing designed and warranted for multiple retreads and a full replacement value warranty for the first 50% of treadwear.
  • All Weather Drive (AWD)
  • All Weather Drive (AWD)
Features
SmartWay Verified
Full depth 3D siping
Snow Groove Technology ™
Wide footprint provides even wear
3PMSF certification

Competitive Comparison*
Michelin XDN2
Bridgestone M760
Goodyear RTD
Continental HDW2
Yokohama SY767
Hankook DL12

*Please consult vehicle manufacturer's certification labels for proper tire application information. Cooper® Tire recommends you always consult a tire service professional when selecting tires for your vehicle.

Specifications

Material # Tire Size Load Range Approved Rim Width Overall Diameter Overall Width Overall Width Loaded Static Loaded Radius Tread Depth (1/32") Revs Tire Weight Single Max Load Single Inflation Pressure Dual Max Load Dual Inflation Pressure
90000038002 295/75R22.5 G 8.25 - 9.00 in 40.8 in 11.3 in 12.2 19 26.0 509/mi 121 lbs 6175 lbs 110 psi 5675 lbs 110 psi
1035 mm 287 mm 311 mm 482 mm 21.0 mm 316/km 55 kg 2800 kg 760 kPa 2575 kg 760 kPA
90000036546 11R22.5 H 7.50 - 8.25 in 41.9 in 11.2 in 12.2 19.5 26.0 494/mi 127.4 lbs 6610 lbs 120 psi 6005 lbs 120 psi
1065 mm 285 mm 309 mm 495 mm 21.0 mm 307/km 57.9 kg 3000 kg 830 kPa 2725 kg 830 kPA
90000036547 11R24.5 H 7.50 - 8.25 in 43.9 in 11.2 in 12.1 20.5 26.0 472/mi 137.3 lbs 7160 lbs 120 psi 6610 lbs 120 psi
1116 mm 285 mm 307 mm 521 mm 21.0 mm 293/km 62.4 kg 3250 kg 830 kPa 3000 kg 830 kPA
